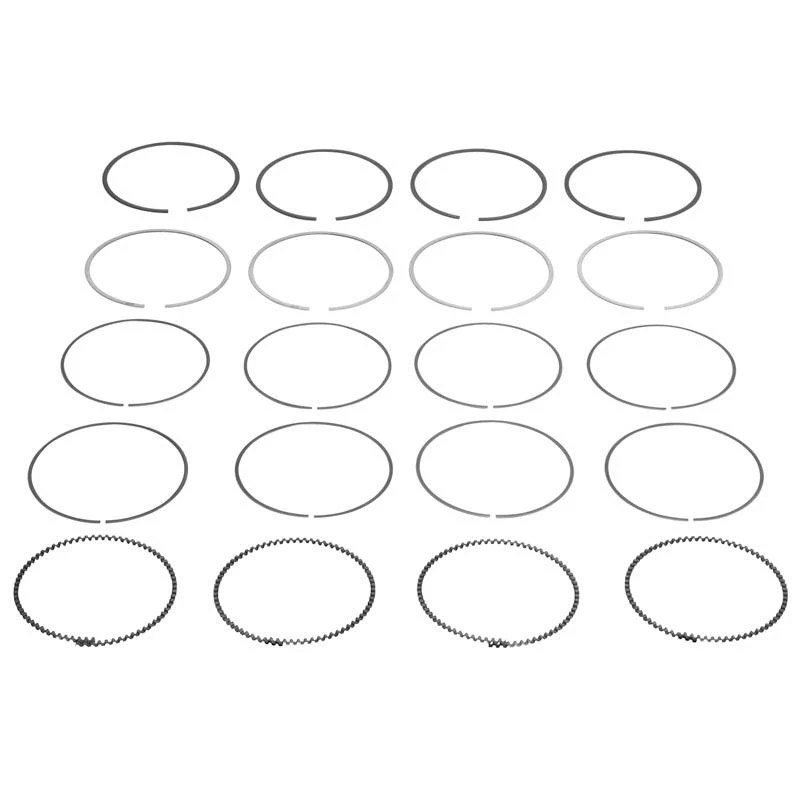

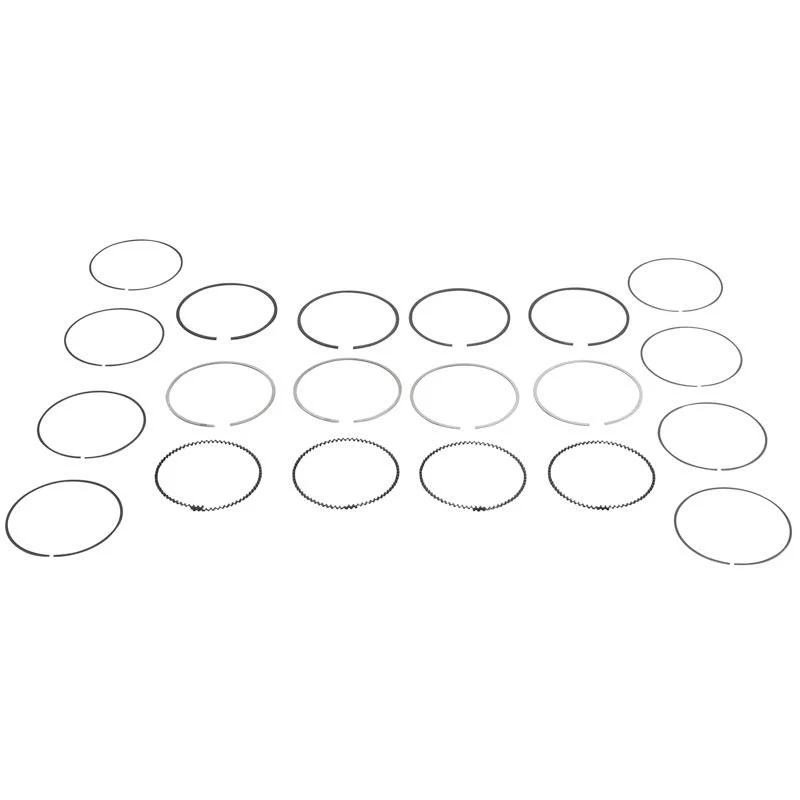

JE Replacement Piston Rings
These are replacement rings for the JE and Wiseco forged pistons that we sell.
86mm option also works with our ZZP forged LTG pistons.Â
86mm:
| Actual Bore Size: | 3.386in |
| Actual Bore Size (Alternate): | 86.00mm |
| Ring Kit - Oil Radial Width: | 0.128in |
| Ring Kit - Oil Thickness: | 2.8mm |
| Ring Kit - Oil Type: | CNF |
| Ring Kit - Second Radial Width: | 0.142in |
| Ring Kit - Second Thickness: | 1.2mm |
| Ring Kit - Second Type: | DPE |
| Ring Kit - Top Radial Width: | 0.126in |
| Ring Kit - Top Thickness: | 1.0mm |
| Ring Kit - Top Type: | CNS |
Â
88mm:
| Actual Bore Size: | 3.465in |
| Actual Bore Size (Alternate): | 88.00mm |
| Ring Kit - Oil Radial Width: | 0.128in |
| Ring Kit - Oil Thickness: | 2.8mm |
| Ring Kit - Oil Type: | CNF |
| Ring Kit - Second Radial Width: | 0.146in |
| Ring Kit - Second Thickness: | 1.2mm |
| Ring Kit - Second Type: | DPE |
| Ring Kit - Top Radial Width: | 0.134in |
| Ring Kit - Top Thickness: | 1.0mm |
| Ring Kit - Top Type: | CNS |
Select Bore Size
From $93.99
JE Replacement Piston Rings—
$93.99
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
These are replacement rings for the JE and Wiseco forged pistons that we sell.
86mm option also works with our ZZP forged LTG pistons.Â
86mm:
| Actual Bore Size: | 3.386in |
| Actual Bore Size (Alternate): | 86.00mm |
| Ring Kit - Oil Radial Width: | 0.128in |
| Ring Kit - Oil Thickness: | 2.8mm |
| Ring Kit - Oil Type: | CNF |
| Ring Kit - Second Radial Width: | 0.142in |
| Ring Kit - Second Thickness: | 1.2mm |
| Ring Kit - Second Type: | DPE |
| Ring Kit - Top Radial Width: | 0.126in |
| Ring Kit - Top Thickness: | 1.0mm |
| Ring Kit - Top Type: | CNS |
Â
88mm:
| Actual Bore Size: | 3.465in |
| Actual Bore Size (Alternate): | 88.00mm |
| Ring Kit - Oil Radial Width: | 0.128in |
| Ring Kit - Oil Thickness: | 2.8mm |
| Ring Kit - Oil Type: | CNF |
| Ring Kit - Second Radial Width: | 0.146in |
| Ring Kit - Second Thickness: | 1.2mm |
| Ring Kit - Second Type: | DPE |
| Ring Kit - Top Radial Width: | 0.134in |
| Ring Kit - Top Thickness: | 1.0mm |
| Ring Kit - Top Type: | CNS |
